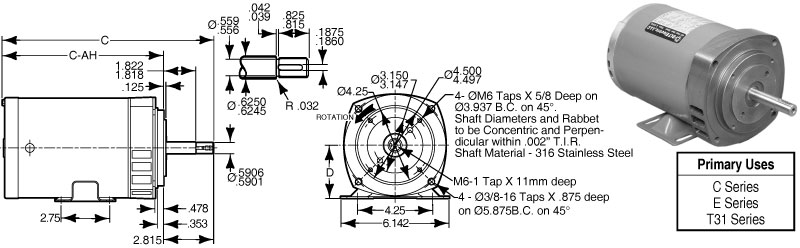

80/42 Frame D3 Motors
1 Phase - 2 POLE 3450 / 2880 RPM
 |
|||||||||||
| HORSE POWER |
ENCL. | FRAME | MTH P/N | WT. LBS. |
DIMENSIONS IN INCHES | HZ | SERVICE FACTOR |
VOLTAGE | WIRING DIAG. |
||
| D | C | C-AH | |||||||||
| 1/3 | ODP | 48 | DLC-5000-03-ODP | 27 | 3.0 | 11.94 | 9.13 | 60 | 1.75 | 115/208-230 |
|
| 50 | 1.0 | 110/220 | |||||||||
| 1/2 | ODP | 48 | DLC-5000-05-ODP | 27 | 3.0 | 11.94 | 9.13 | 60 | 1.60 | 115/208-230 |
|
| 50 | 1.0 | 110/220 | |||||||||
| 3/4 | ODP | 48 | DLC-5000-07-ODP | 31 | 3.0 | 12.44 | 9.63 | 60 | 1.5 | 115/208-230 |
|
| 50 | 1.0 | 110/220 | |||||||||
| 1 | ODP | 48 | DLC-5000-01-ODP | 31 | 3.0 | 12.44 | 9.63 | 60 | 1.4 | 115/208-230 |
|
| 50 | 1.0 | 110/220 | |||||||||
| 1 1/2 | ODP | 48 | BLC-5000-51-ODP | 27.5 | 3.5 | 14.15 | 11.33 | 60 | 1.30 | 115/208-230 |
|
| 50 | 1.00 | 110/220 | |||||||||
| 2 | ODP | 56 | BLC-5000-02-ODP | 24 | 3.5 | 13.65 | 10.84 | 60 | 1.20 | 115/208-230 |
|
| 50 | 1.00 | 110/220 | |||||||||
ATTENTION |
|

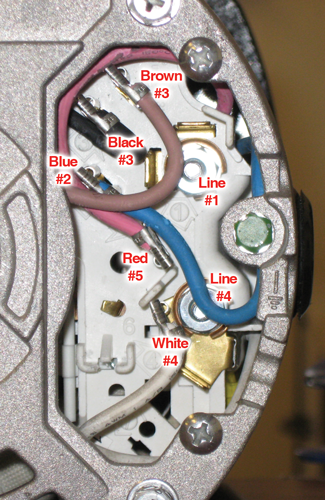

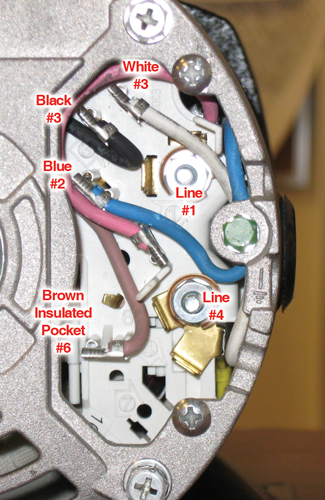

MUST READ BEFORE INSTALLING MOTOR Single phase DLT Electric motors are pre-wired at the factory for low voltage (115V). If installing for high voltage (230V) you must change the position on two wires. Brown Wire: Connect to insulated pocket #6 Power source: Connect one lead to #1 post & one lead to #4 post. |
|
(Note: The pictures above, show the back of the motor, after the cover has been removed.) FAILURE TO WIRE PUMP CORRECTLY WILL VOID ANY MANUFACTURERS WARRANTY |
|
