150 • 160 • 170 • 250 • 260 • 270 Series Regenerative Turbine Pumps
Dimensional Drawings
Horizontal Flex-Coupled

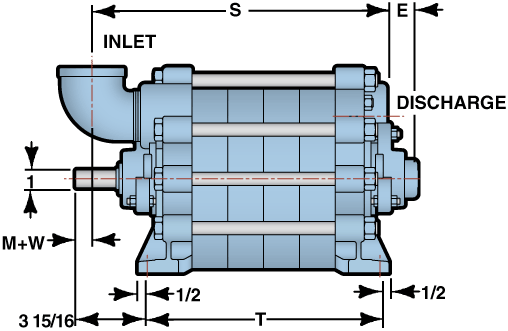

150 • 160 • 170 Dimensions
 |
PUMP ONLY |
|||||||
| PUMP SERIES |
INLET |
DISCHARGE |
E |
F |
M+W |
S |
T |
|
| 151 • 161 |
2 |
2 |
1 13/16 (46mm) |
11 (279mm) |
1 (25mm) |
10 1/8 (257mm) |
7 (178mm) |
|
| 152 • 162 |
2 |
2 |
1 13/16 (46mm) |
11 (279mm) |
1 (25mm) |
12 1/8 (308mm) |
9 (229mm) |
|
| 153 • 163 |
2 |
2 |
1 13/16 (46mm) |
11 (279mm) |
1 (25mm) |
14 1/8 (359mm) |
11 (279mm) |
|
| 154 • 164 |
2 |
2 |
1 13/16 (46mm) |
11 (279mm) |
1 (25mm) |
16 1/8 (410mm) |
13 (330mm) |
|
| 171 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
11 1/2 (292mm) |
1 1/2 (38mm) |
12 1/2 (318mm) |
9 (229mm) |
|
| 172 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
11 1/2 (292mm) |
1 1/2 (38mm) |
16 1/2 (419mm) |
13 (330mm) |
|
| 173 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
11 1/2 (292mm) |
1 1/2 (38mm) |
20 1/2 (521mm) |
17 (432mm) |
|
| 174 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
11 1/2 (292mm) |
1 1/2 (38mm) |
24 1/2 (622mm) |
21 (533mm) |
|
150 • 160 Series |
|||||||||||||||||
| FRAME |
CPLG |
ALL 150 • 160 MODELS |
|
MODEL 151 • 161 |
|
MODEL 152 • 162 |
|
MODEL 153 • 163 |
|
MODEL 154 • 164 |
|||||||
EE |
D |
HD |
F |
|
L |
W |
|
L |
W |
|
L |
W |
|
L |
W |
||
| 143T |
4J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
28 (368mm) |
12 (305mm) |
|
30 (762mm) |
12 (305mm) |
|
32 (813mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
| 145T |
4J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
28 (368mm) |
12 (305mm) |
|
30 (762mm) |
12 (305mm) |
|
32 (813mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
| 182T |
5J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
30 (762mm) |
12 (305mm) |
|
32 (813mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
| 184T |
5J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
30 (762mm) |
12 (305mm) |
|
32 (813mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
| 213T |
6J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
35 (889mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
| 215T |
6J |
2 1/4 (57mm) |
5 1/4 (133mm) |
12 1/2 (318mm) |
11 (279mm) |
|
35 (889mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
| 254T |
7S |
2 1/4 (57mm) |
6 1/4 (159mm) |
13 1/2 (343mm) |
12 (305mm) |
|
40 (1016mm) |
15 (381mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
| 256T |
8S |
2 1/4 (57mm) |
6 1/4 (159mm) |
13 1/2 (343mm) |
12 (305mm) |
|
40 (1016mm) |
15 (381mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
| 284T |
8S |
2 1/4 (57mm) |
7 (178mm) |
14 1/4 (362mm) |
12 3/4 (324mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 286T |
8S |
2 1/4 (57mm) |
7 (178mm) |
14 1/4 (362mm) |
12 3/4 (324mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 324T |
8S |
2 1/4 (57mm) |
8 (203mm) |
15 1/4 (387mm) |
13 3/4 (349mm) |
|
45 (1143mm) |
18 (457mm) |
|
45 (1143mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
| 326T |
8S |
2 1/4 (57mm) |
8 (203mm) |
15 1/4 (387mm) |
13 3/4 (349mm) |
|
45 (1143mm) |
18 (457mm) |
|
45 (1143mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
| 364T |
8S |
2 1/4 (57mm) |
9 (229mm) |
16 1/4 (413mm) |
14 3/4 (375mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
170 Series |
|||||||||||||||||
| FRAME |
CPLG |
ALL 170 MODELS |
|
MODEL 171 |
|
MODEL 172 |
|
MODEL 173 |
|
MODEL 174 |
|||||||
| EE |
D |
HD |
F |
|
L |
W |
|
L |
W |
|
L |
W |
|
L |
W |
||
| 143T |
4J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
30 (762mm) |
12 (305mm) |
|
33 (838mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 145T |
4J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
30 (762mm) |
12 (305mm) |
|
33 (838mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 182T |
5J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
32 (813mm) |
12 (305mm) |
|
38 (965mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 184T |
5J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
32 (813mm) |
12 (305mm) |
|
38 (965mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 213T |
6J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
| 215T |
6J |
2 1/8 (54mm) |
5 1/4 (133mm) |
13 1/4 (337mm) |
11 (279mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
| 254T |
7S |
2 1/8 (54mm) |
6 1/4 (159mm) |
14 1/4 (362mm) |
12 (305mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
| 256T |
8S |
2 1/8 (54mm) |
6 1/4 (159mm) |
14 1/4 (362mm) |
12 (305mm) |
|
40 (1016mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
| 284T |
8S |
2 1/8 (54mm) |
7 (178mm) |
15 (381mm) |
12 3/4 (324mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
| 286T |
8S |
2 1/8 (54mm) |
7 (178mm) |
15 (381mm) |
12 3/4 (324mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
| 324T |
8S |
2 1/8 (54mm) |
8 (203mm) |
16 (406mm) |
13 3/4 (349mm) |
|
45 (1143mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| 326T |
8S |
2 1/8 (54mm) |
8 (203mm) |
16 (406mm) |
13 3/4 (349mm) |
|
45 (1143mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| 364T |
8S |
2 1/8 (54mm) |
9 (229mm) |
17 (432mm) |
14 3/4 (375mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| All dimensions in inches. May vary ± 1/4 inches. |
|||||||||||||||||

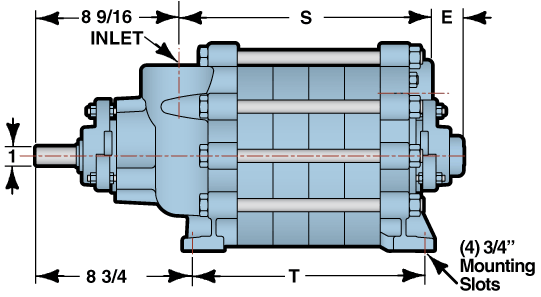

250 • 260 • 270 Dimensions
 |
PUMP ONLY |
||||||
| PUMP SERIES |
INLET |
DISCHARGE |
E |
F |
S |
T |
|
| 251 • 261 |
2 1/2 |
2 |
1 13/16 (46mm) |
10 1/4 (260mm) |
8 (203mm) |
7 (178mm) |
|
| 252 • 262 |
2 1/2 |
2 |
1 13/16 (46mm) |
10 1/4 (260mm) |
10 (254mm) |
9 (229mm) |
|
| 253 • 263 |
2 1/2 |
2 |
1 13/16 (46mm) |
10 1/4 (260mm) |
12 (305mm) |
11 (279mm) |
|
| 254 • 264 |
2 1/2 |
2 |
1 13/16 (46mm) |
10 1/4 (260mm) |
14 (356mm) |
13 (330mm) |
|
| 271 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
10 1/4 (260mm) |
10 (254mm) |
9 (229mm) |
|
| 272 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
10 1/4 (260mm) |
17 (432mm) |
13 (330mm) |
|
| 273 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
10 1/4 (260mm) |
18 (457mm) |
17 (432mm) |
|
| 274 |
2 1/2 |
2 1/2 |
1 15/16 (49mm) |
10 1/4 (260mm) |
22 (559mm) |
21 (533mm) |
|
250 • 260 Series |
|||||||||||||||||
| FRAME |
CPLG |
ALL 250 • 260 MODELS |
|
MODEL 251 • 261 |
|
MODEL 252 • 262 |
|
MODEL 253 • 263 |
|
MODEL 254 • 264 |
|||||||
| EE |
D |
HD |
F |
|
L |
W |
|
L |
W |
|
L |
W |
|
L |
W |
||
| 143T |
4J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
--- |
--- |
|
--- |
--- |
| 145T |
4J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
35 (889mm) |
12 (305mm) |
|
--- |
--- |
|
--- |
--- |
| 182T |
5J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 184T |
5J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 213T |
6J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 215T |
6J |
2 1/4 (57mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
40 (1016mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
| 254T |
7S |
2 1/4 (57mm) |
6 1/4 (159mm) |
12 3/4 (324mm) |
11 1/4 (286mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 256T |
8S |
2 1/4 (57mm) |
6 1/4 (159mm) |
12 3/4 (324mm) |
11 1/4 (286mm) |
|
45 (1143mm) |
15 (381mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 284T |
8S |
2 1/4 (57mm) |
7 (178mm) |
13 1/2 (343mm) |
12 (305mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 286T |
8S |
2 1/4 (57mm) |
7 (178mm) |
13 1/2 (343mm) |
12 (305mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
| 324T |
8S |
2 1/4 (57mm) |
8 (203mm) |
14 1/2 (368mm) |
13 (330mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
| 326T |
8S |
2 1/4 (57mm) |
8 (203mm) |
14 1/2 (368mm) |
13 (330mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
| 364T |
8S |
2 1/4 (57mm) |
9 (229mm) |
15 1/2 (394mm) |
14 (356mm) |
|
50 (1270mm) |
18 (457mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
270 Series |
|||||||||||||||||
| FRAME |
CPLG |
ALL 270 MODELS |
|
MODEL 271 |
|
MODEL 272 |
|
MODEL 273 |
|
MODEL 274 |
|||||||
| EE |
D |
HD |
F |
|
L |
W |
|
L |
W |
|
L |
W |
|
L |
W |
||
| 143T |
4J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
--- |
--- |
|
--- |
--- |
| 145T |
4J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
40 (1016mm) |
12 (305mm) |
|
--- |
--- |
|
--- |
--- |
| 182T |
5J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
| 184T |
5J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
35 (889mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
| 213T |
6J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
|
55 (1397mm) |
12 (305mm) |
| 215T |
6J |
2 1/8 (54mm) |
5 1/4 (133mm) |
11 3/4 (298mm) |
10 1/4 (260mm) |
|
40 (1016mm) |
12 (305mm) |
|
45 (1143mm) |
12 (305mm) |
|
50 (1270mm) |
12 (305mm) |
|
55 (1397mm) |
12 (305mm) |
| 254T |
7S |
2 1/8 (54mm) |
6 1/4 (159mm) |
12 3/4 (324mm) |
11 1/4 (286mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
|
60 (1524mm) |
15 (381mm) |
| 256T |
8S |
2 1/8 (54mm) |
6 1/4 (159mm) |
12 3/4 (324mm) |
11 1/4 (286mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
|
60 (1524mm) |
15 (381mm) |
| 284T |
8S |
2 1/8 (54mm) |
7 (178mm) |
13 1/2 (343mm) |
12 (305mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
|
60 (1524mm) |
15 (381mm) |
| 286T |
8S |
2 1/8 (54mm) |
7 (178mm) |
13 1/2 (343mm) |
12 (305mm) |
|
45 (1143mm) |
15 (381mm) |
|
50 (1270mm) |
15 (381mm) |
|
55 (1397mm) |
15 (381mm) |
|
60 (1524mm) |
15 (381mm) |
| 324T |
8S |
2 1/8 (54mm) |
8 (203mm) |
14 1/2 (368mm) |
13 (330mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| 326T |
8S |
2 1/8 (54mm) |
8 (203mm) |
14 1/2 (368mm) |
13 (330mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| 364T |
8S |
2 1/8 (54mm) |
9 (229mm) |
15 1/2 (394mm) |
14 (356mm) |
|
50 (1270mm) |
18 (457mm) |
|
55 (1397mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
|
60 (1524mm) |
18 (457mm) |
| All dimensions in inches. May vary ± 1/4 inches. |
|||||||||||||||||
Click here to return to the 150 • 160 • 170 Product Information Page.
For a copy of the 150 • 250 • 160 • 260 • 170 • 270 Manual and 150 • 250 • 160 • 260 • 170 • 270 Parts List, go to the Product Support Page.
Download a printable version of the 150 • 250 • 160 • 260 • 170 • 270 Product Bulletin in .pdf format.
