Models 170J • 270J Individual Curve

150 • 160 • 170 • 250 • 260 • 270 Product Information Page

<< Prev Model Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

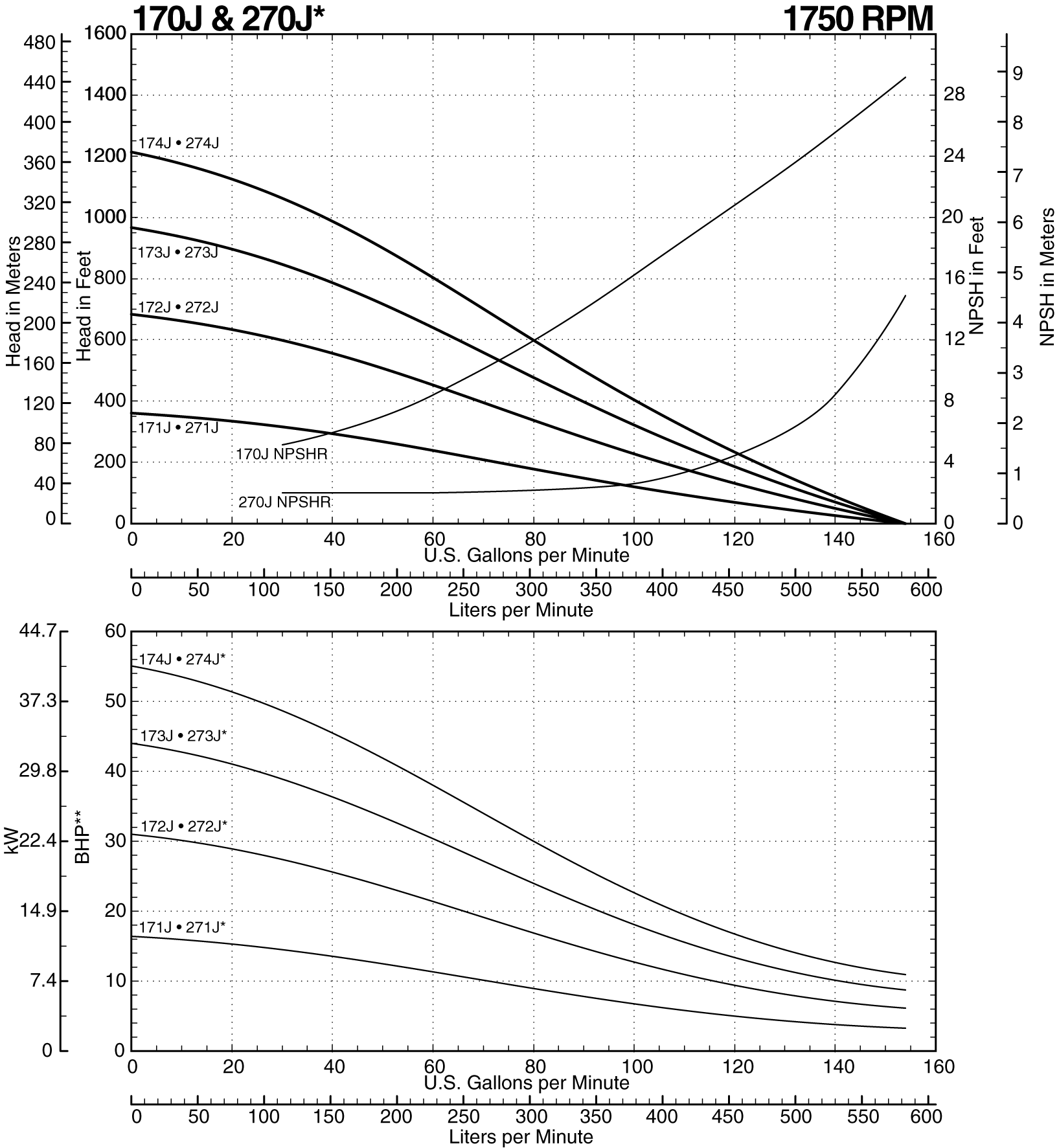

170J 1750 RPM

See this individual curve in 1750 RPM, 60Hz Operation

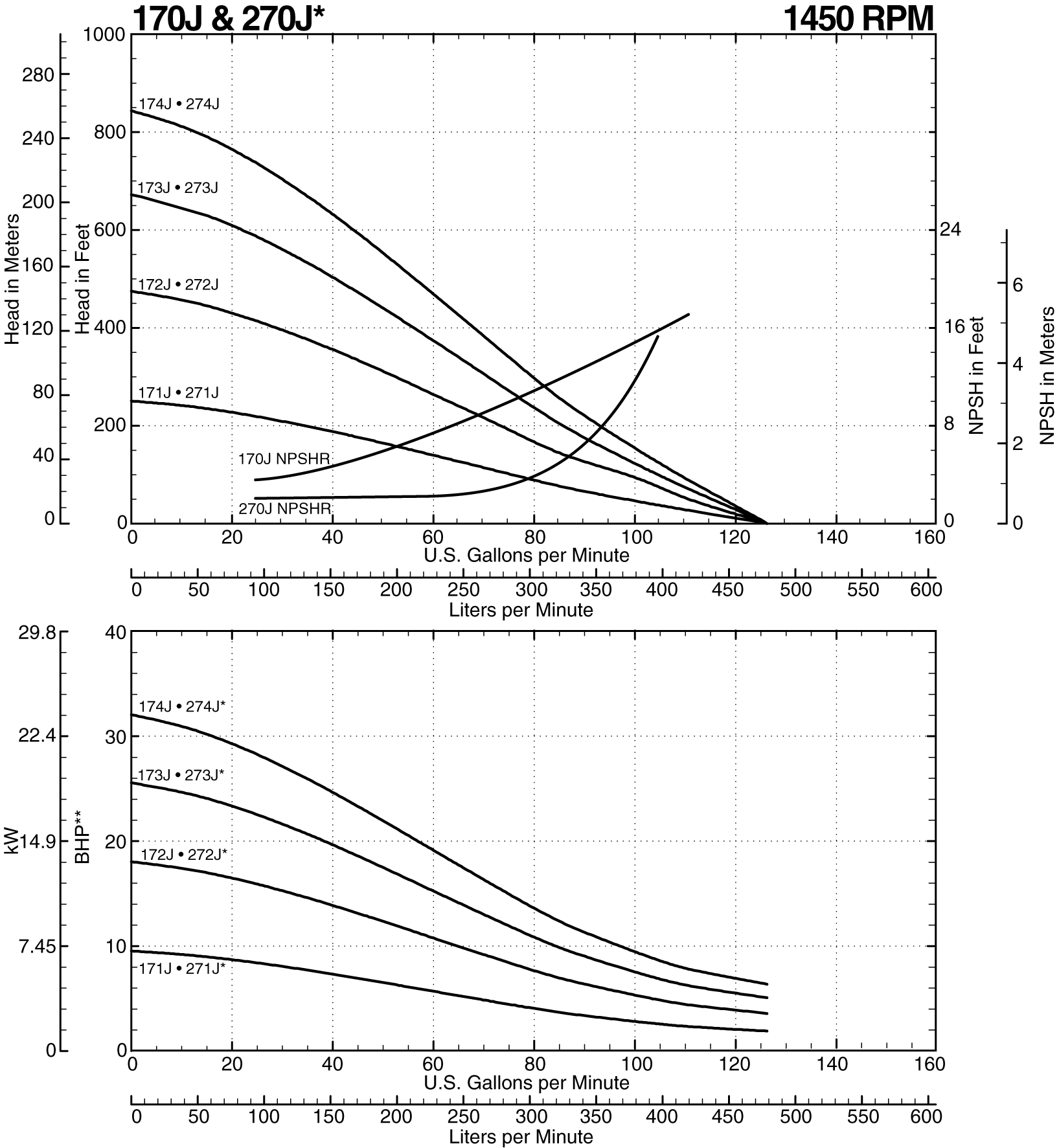

See this individual curve in 1450 RPM, 50Hz Operation
<< Prev Model Next Model >>

See how the 170J curve performs at different speeds.

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 62.0 GPM
*Add 1 horsepower for 270 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
