Model M51E•L51E thru M55E•L55E Individual Curve

M50 • L50 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

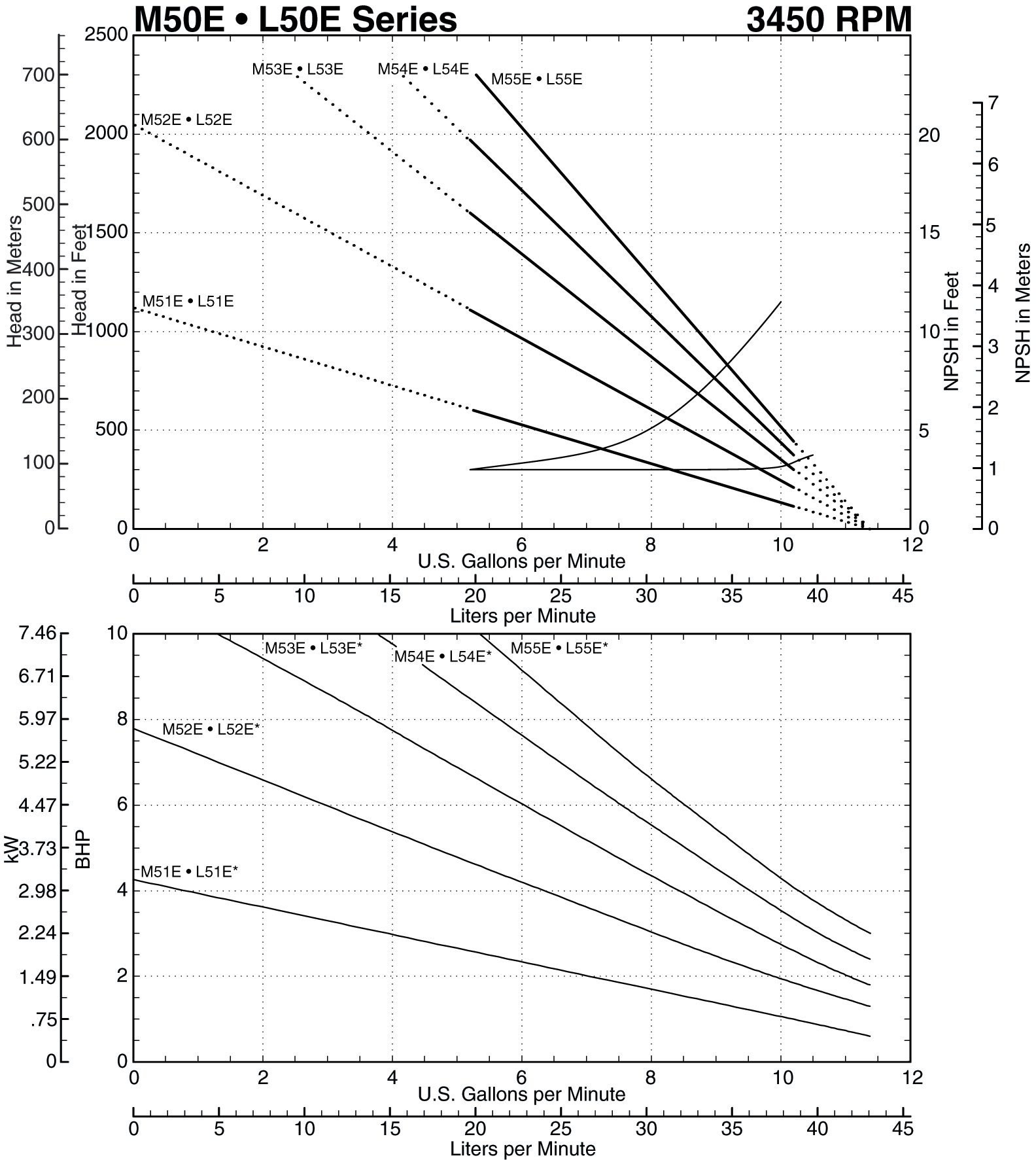

M50E-L50E 3450 RPM

See this individual curve in 3450 RPM, 60Hz Operation

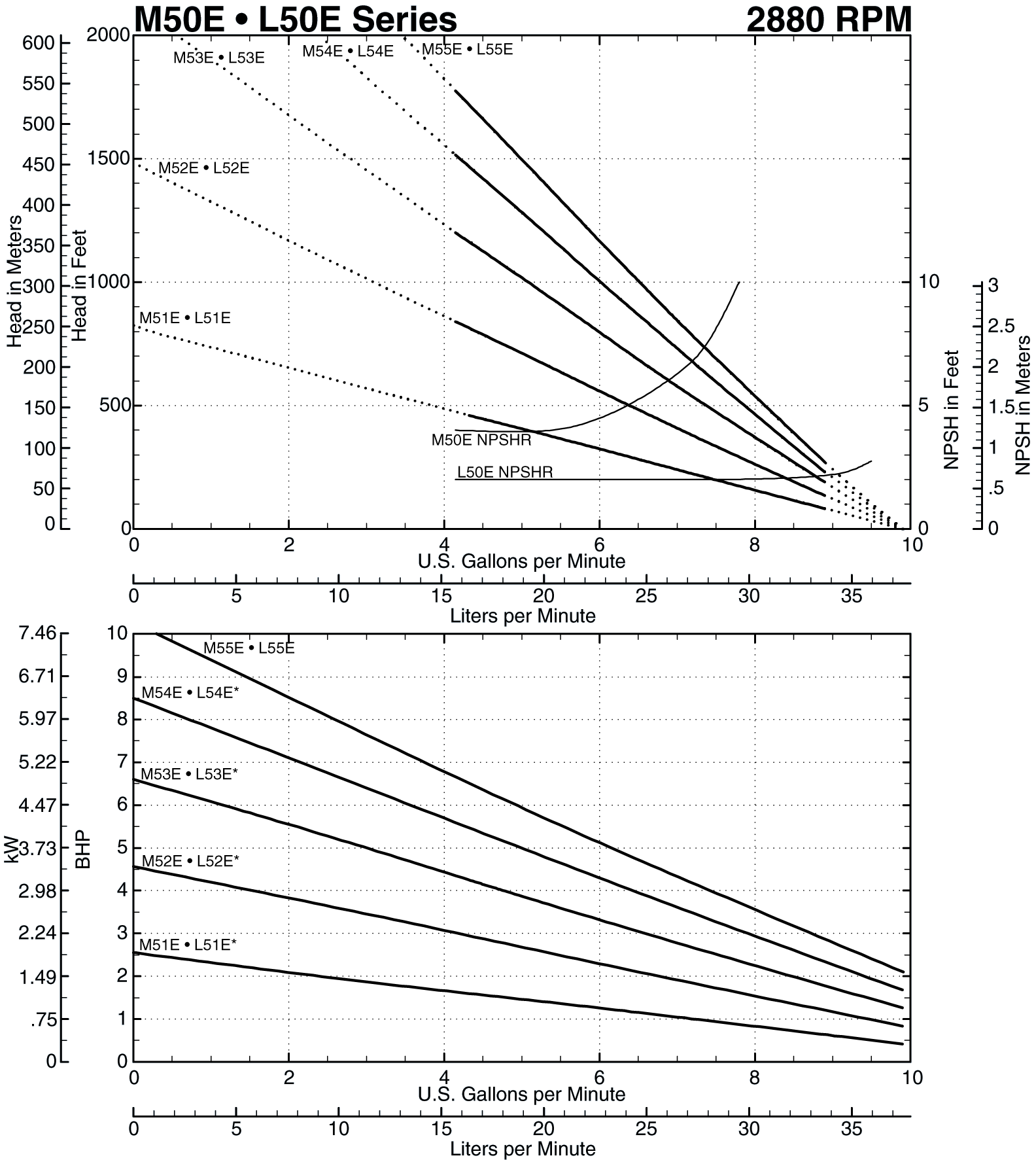

See this individual curve in 2880 RPM, 50Hz Operation

<< Prev Model

Next Model >>

Notes:
Recommended Operating Range Recommended Operating Range
Refer to Factory Refer to Factory for Operation in this Range
*Add .57 horsepower for L50E Inducer Models
Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
