Model T51P • E51P Individual Curve

T51 • E51 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

T51P 2880 Performance Curve

T51P 2880 Performance Curve

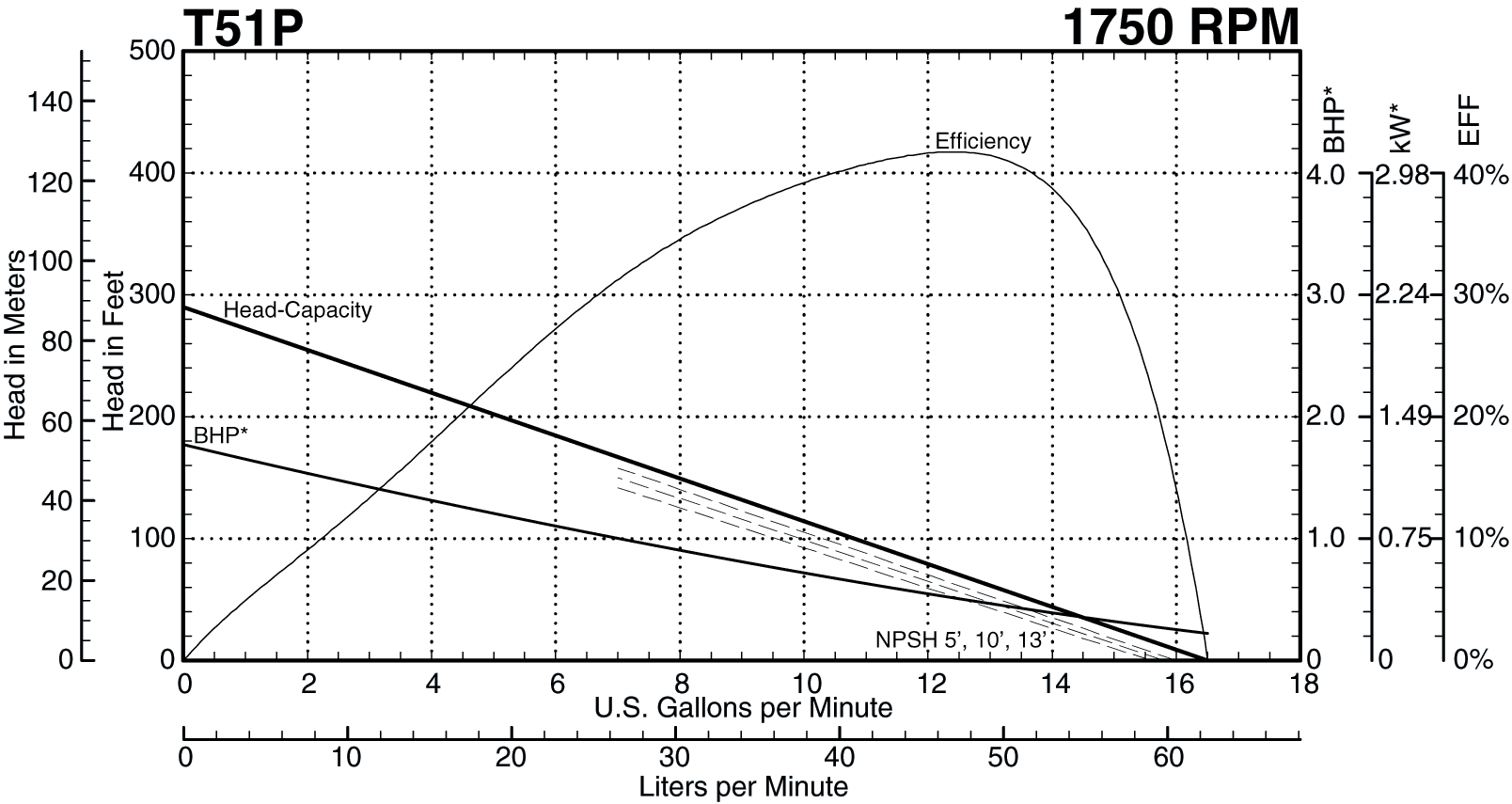

T51P 1750 Performance Curve

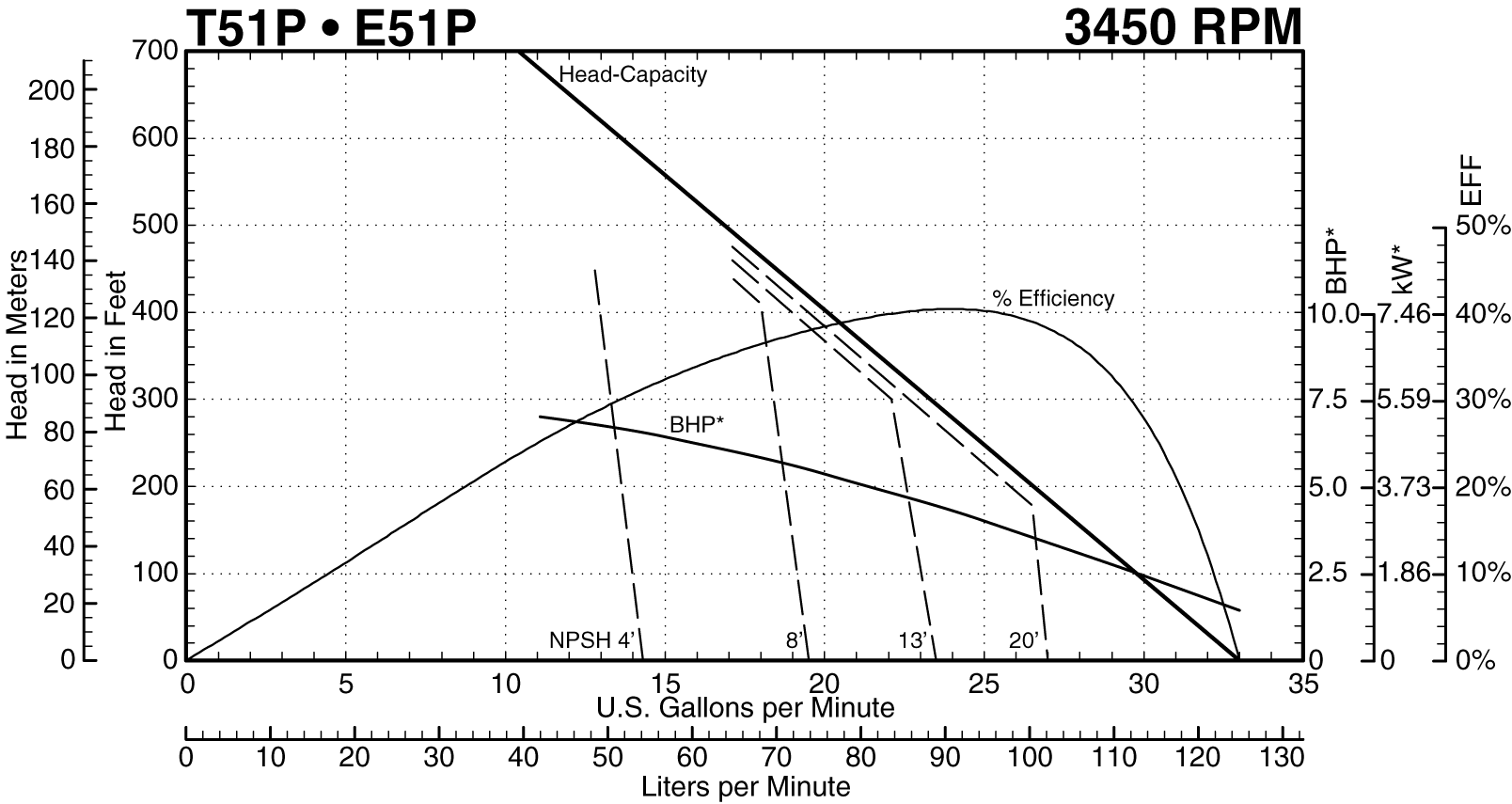

T51P 3450 Performance Curve
<< Prev Model

Next Model >>

DOE Compliance: IMP DIA = 4.30” PEIcl = 0.70

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the T51 • E51 Product Information Page.
