HP41 • HP412 Hermetic Regenerative Turbine Refrigerant Pump

Back to Custom Engineered Products

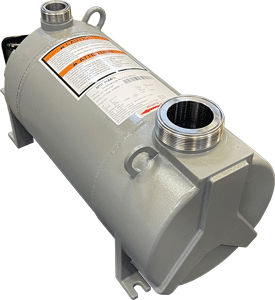

HP41 Series Pump

  • Capacities to 45 GPM

  • Heads to 200 Feet

  • Temperatures to 150°F* (66°C)

  • Inverter Duty Motor

  • Sealless

  • For Non-conductive Fluids

  • For Non-corrosive Fluids

Performance Curves

HP41 Series Performance Curves

See individual performance curve below.

Dimensions

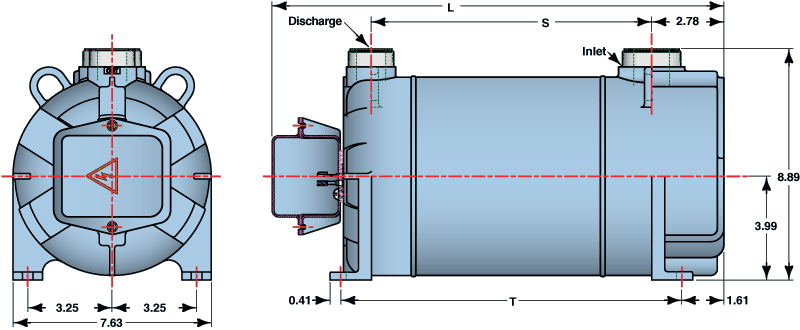

HP41 Series Dimensions

PUMP MODEL INLET DISCHARGE HP L S T
HP41E 1.75-12 Rotalock 1.25-12 Rotalock 1 1/2 16.38 9.79 12.13
HP41J 1.75-12 Rotalock 1.25-12 Rotalock 1 1/2 16.38 9.79 12.13
HP41J 1.75-12 Rotalock 1.25-12 Rotalock 3 17.38 10.79 13.13
HP41P 2.25-12 Rotalock 1.75-12 Rotalock 3 17.38 10.79 13.13
HP412P 2.875-12 Rotalock 1.75-12 Rotalock 5 18.63 12.05 14.38
HP412P 2.875-12 Rotalock 1.75-12 Rotalock 7 1/2 19.63 13.05 15.38

HP41E Curve

HP41J Curve

HP41P Curve

HP412P 1750 Curve

HP412P 3450 Curve

Download a printable version of the HP Series Product Bulletin in .pdf format.
